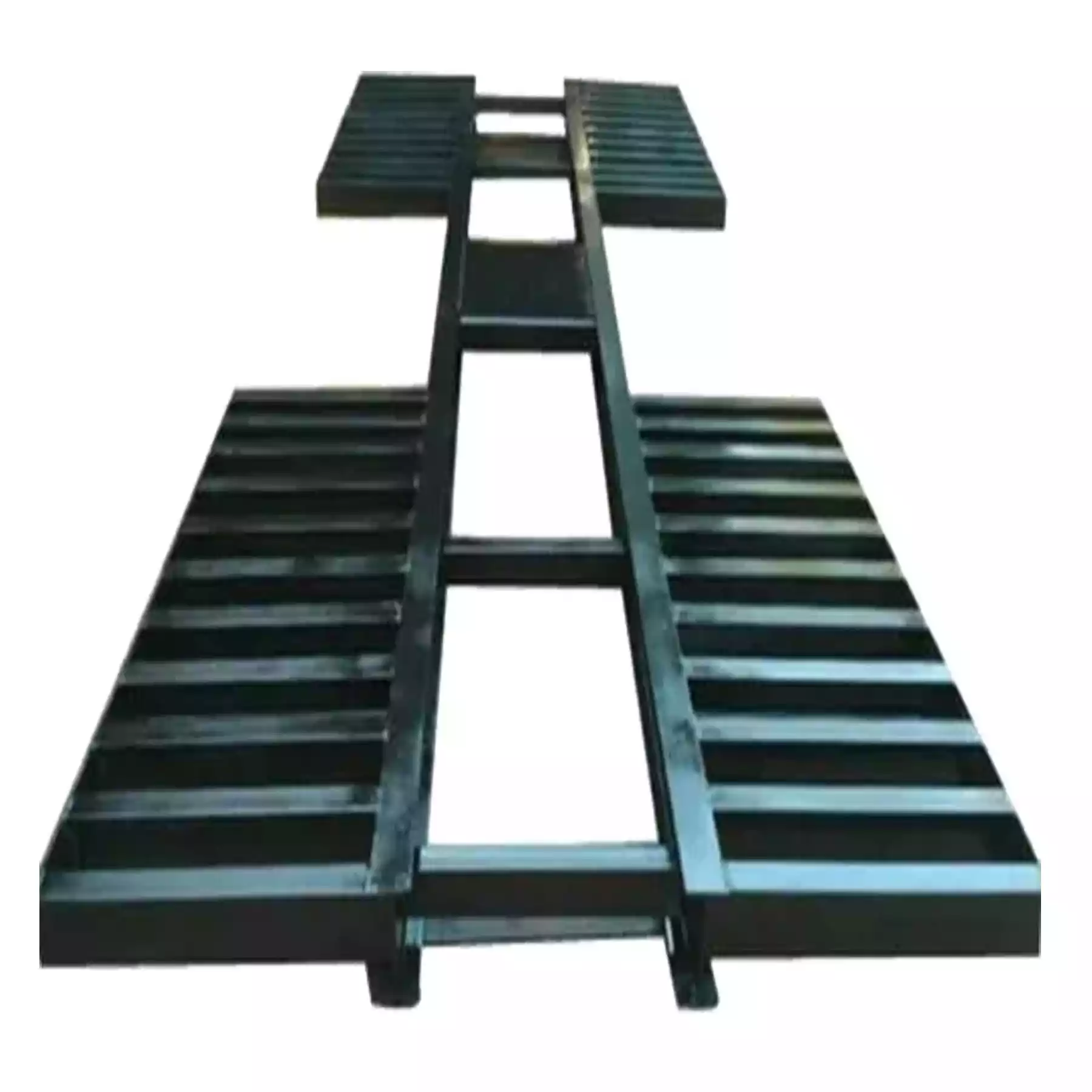

Tyre Rest Platform Type Washing Lift
Owing to our rich industry experience, we indulge in manufacturing and supplying an outstanding Car Washing Lift. Designed and manufactured in compliance with international standards, this very product is a delight for clients.
Highlights:
- Plungers are of high grade steel manufactured to close tolerance with hard chrome plating for high wear resistance and good finish
- Outer cylinder coated with Fiber Reinforced Plastic protecting it against corrosion (optional)
- Uniquely designed wiper rings prevent entry of water and dust into the Hoist cylinder
- Gland rings used in the plungers are designed for enhanced performance
- Heavy duty rigid ramps accommodate a wide range of vehicles of varying size and type
- Capacity (Tons) : 4
- No. of Posts : 1
- Plunger Diameter (M) : 270
- Operating Pressure (Kg/cm2) : 9 to 12
- Lifting Height (mm) : 1500
- Ramp Length front (mm) : 3636
- Ramp Width (mm) : 700
- Oil fill Capacity (Ltrs) : 150
Minimum Order Quantity 1 Piece
Lifting Capacity(in KGs) 4000
Lift height (Minimum) 200
Lift height (Maximum) 1500
Type One Cylinder Hydraulic Lift
Our company designs and manufactures superior quality Hydraulic Lifts, which are robust and light in weight. The Hydraulic Lifts function when the downward motion of the plunger assembly causes displacement of oil through the metering tube holes and decelerate the impacting mass. The measure of the lift''s high performance depends on the displacement of oil and that of the buffer depends on the size and distribution of these holes. The gas spring ensures the re-extending of the plunger and the frictional forces check whether this re-extending of the plunger has been achieved.
Technical Specifications:
ModelA.T.L. 4Plunger dia270 mmCapacity4 Tons (4000 kg)Maximum lifting height1500 mmOperating pressure8-10 kg/cm2Oil fitting capacity150 lOverall frame length4500 mmOverall frame width700 mm
