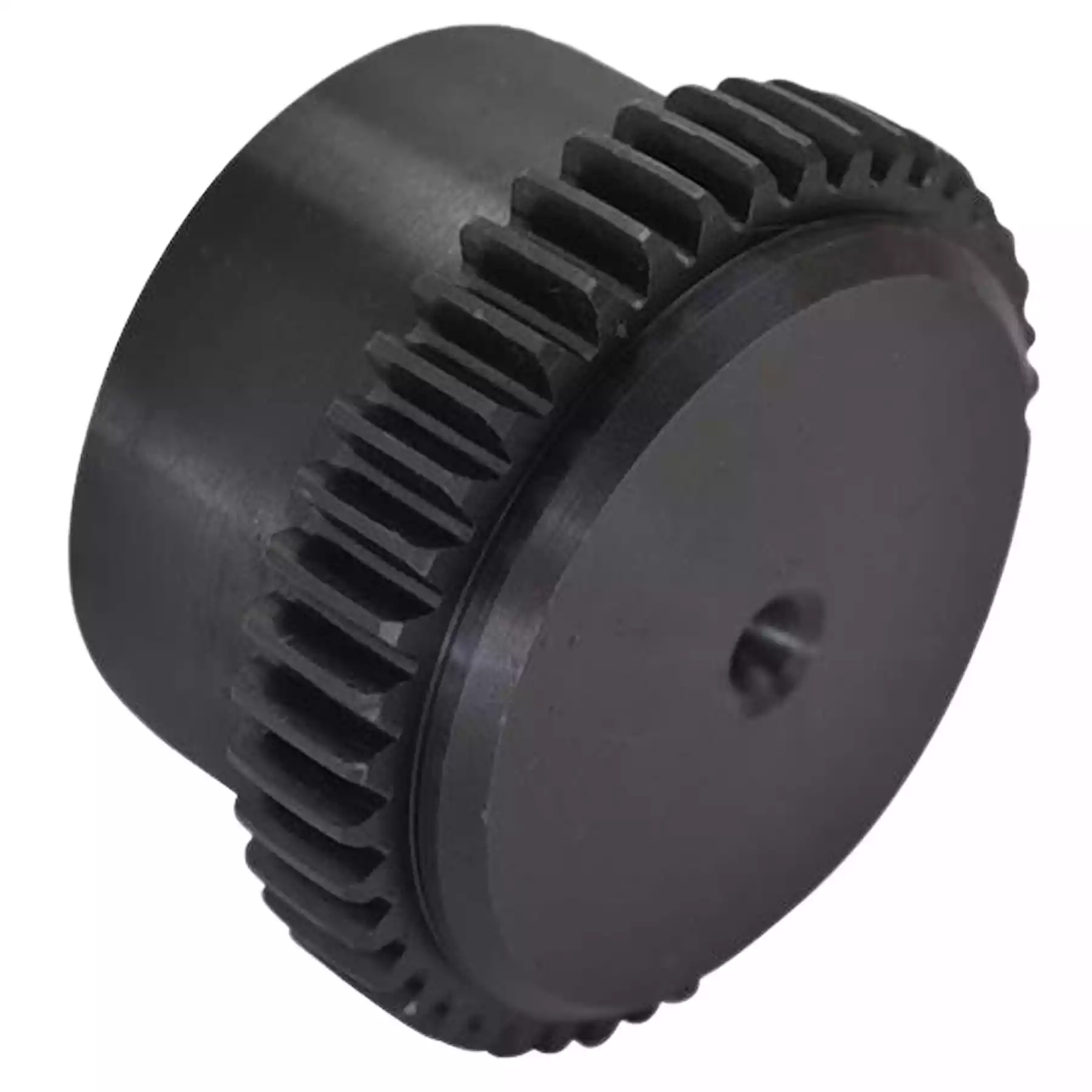

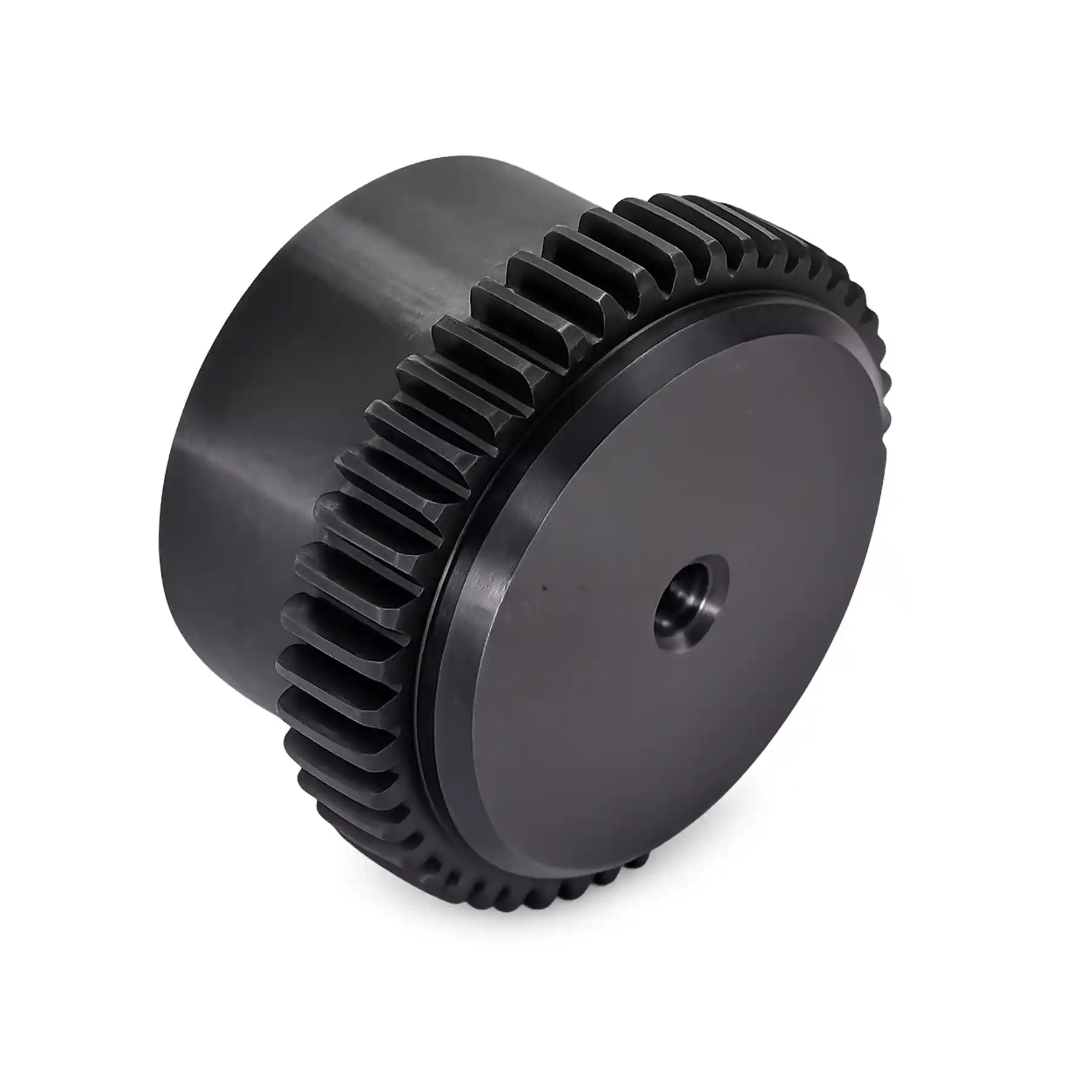

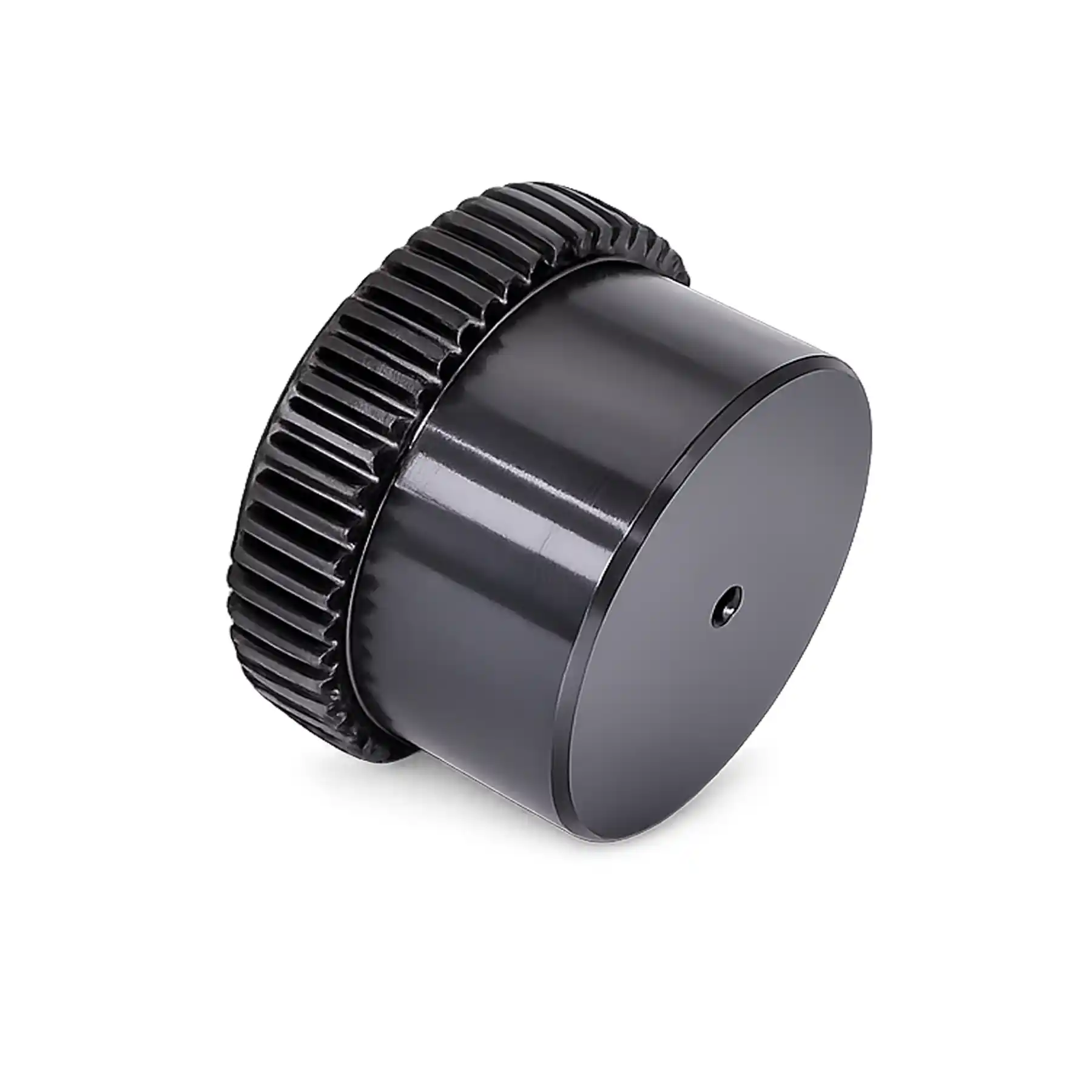

Barrel Pump Gear Couplings

Coupling Types                            Gear coupling
Bore                                    19mm
Outside Diameter                        32mm
Torque Rating                            16Nm
Misalignment - Angular                    2°
Misalignment - Parallel                     1mm
Country of Origin                            Italy

Barrel couplings are used to connect the drive shaft of a gearbox to the rope drum in crane and hoisting applications. They are torsionally rigid, easy to assemble and maintain, and compensate for axial and radial shaft misalignments. Barrel couplings are designed to avoid high bending moments and compensate for misalignments, and also to absorb axial displacement.
